Hello there.
In this video, I’m going to show you a data structure called a stack.
We’re going to make a diagram of it.
We’re going to explain how it works.
We’re going to look at its typical interface,
and we’re just going to kind of work through the concept
of what is a stack and what does it do and all that stuff.
Where’s your daddy and what does he do?
So for starters, what am I talking about?
What am I talking about?
Let me open up a little notepad here.
And I’m going to start drawing.
A stack is pretty simple when you first think about it.
It just takes a little bit more work to really get all the details down.
Imagine I have a data structure and maybe like at the bottom here,
there’s like some grass.
And so we can say that the data structure is empty when we first start.
Okay, so there’s kind of a stack here, but it’s empty.
So there’s nothing really on screen.
Imagine then I wanted to add integers into this stack.
So I’m going to say let’s add the integers eight and then two and then three and then four for some reason.
Okay, so how do we do this?
The first thing we do is we take the eight and we just put it on top of the stack.
You can imagine this as a stack of boxes or a stack of books or a stack of whatever.
When we add items, we’re always going to add to the top of the stack.
When the stack is empty, we’re obviously just going to add like at the very bottom, you know, at the ground floor.
But that’s sort of the top.
when we add the two here the next thing that happens is we just put the two on top of the eight
and the next thing that we do is we uh put the three on top of the two and so forth right so
it’s important to understand a few a few rules about stacks let me add that four real fast
in stacks you’re only allowed to add to the top or remove from the top you’re not allowed to add
or remove from anywhere else let me put a t for top right here so basically you’re allowed to add
So basically you’re allowed to add and remove from the top.
So if I wanted to add, let’s say a 12, the 12 would have to go on top of the four.
It couldn’t go anywhere else in this data structure.
And if I wanted to remove data from this stack, I could only remove the four.
I could not remove the three or two or the eight or anything.
You’re also not allowed to look at the middle of the stack.
You’re not allowed to look anywhere but the top.
So if I wanted to look at the three, the two or the eight, I wouldn’t be allowed to do it.
I can only look at the four.
look at the four and if I want to see that three I have to pop the four off
first in order to just see what’s under it and technically unless you have the
data you added memorized somewhere else you probably shouldn’t know what’s under
the four until you actually remove it okay so we can add and remove from the
top we can’t look in the middle we can’t look at the bottom or anything like that
and let’s do a little let’s do a little sequence of pops let me show you what
So first off, you can imagine a stack is sort of like a vector or a list with less functionality or more restrictions.
It’s useful to add restrictions on top of more robust data structures for the purposes of, I don’t know, kindling your imagination or allowing yourself to use easier implementations or whatever.
If you’re a musician or artist, probably at some point you’ve been stumped and you’ve had writer’s block and you can’t figure out what to create.
can’t figure out what to create so uh you know i know sometimes musicians when they get writer’s
block they’ll they’ll go to the swap meet and they’ll buy like an old dusty dirty uh casio
keyboard from 1985 and then they’ll write a full song just with that one piece of equipment and it
really stirs their creativity or it sparks their creativity and then when they’re done then they’ll
probably upgrade to better equipment but anyway so there’s there’s a bunch of different reasons to
use you know lesser data structures although this is not really lesser it’s very useful
It’s very useful in its own right.
So let’s see the interface.
So what can we do in a stack?
I’m going to put S for stack.
Actually, I’m just going to type this up as code.
No need to use the pen the whole entire time.
Let’s see.
So I’m going to put S for stack.
Maybe I’ll say, you know, stack that holds integers.
And I’ll just put an S here.
If you don’t know how to code right now, at this point in your career, just bear with
me.
variable of type stack and in C++ these stacks you know stacks are a template of data structure
which means the integers that we are holding inside of the stack they could be any other data
type that we wanted to including custom classes so in C++ we would use these angle brackets to
say I want my stack to hold integers and then I’m going to say s is the variable that I’ll use for
the stack so but this is not really a programming video this is just about stacks so if I wanted to
stack to push something like onto the top of the stack i would use the the method push the method
push usually has this prototype let’s see i’ll do stack push and it usually takes in a t type element
and again the t type it’s a templated data type which means right now if i just declared a stack
that was of type integer it holds integers then the t would actually expand under the hood in c
hood in C++ anyway at compile time to be an integer. So it would be like typing int e, right?
So whenever I type t, just understand that that means one instance of a thing that you could put
into the stack. So we’ve got a push here and usually the return type is void and it takes in
one element to push. And that means if I’m going to actually call, let me put some comments here.
If I’m going to actually call push on the stack, I’ve got to give it something to push and the
type of the thing that I’m pushing has to match what the stack was declared to hold. So in this
case, it’s integers. So I’m going to put an eight to match the diagram up above. And then after that,
maybe I wanted to push another number. So it’s going to be a two. And I’m just going to match
what the diagram has up above. So eight, two, three, four. So that’s the interface for pushing
usually in C++. And other languages should be similar. The other thing you can do with stacks
We haven’t done that yet, but let me show it to you first.
POP usually comes in two forms,
depending on what implementation you’re looking at.
So sometimes POP returns nothing.
It simply removes an item from the top of the stack.
And sometimes it returns a copy of the item
that you’re actually removing.
So I’m going to put like stack here and then like stack
just to show you that it’s inside of the namespace.
Oh, I don’t know.
Maybe that’s too C++y.
I’ll get rid of that stuff.
Hold on.
hold on so we’ll maybe do this just to show you that we have three separate
parts to this little code snip so sometimes pop doesn’t give you a copy of
the thing it removes sometimes it gives you a copy of the thing it removes in
cases where pop does not give you a copy of the thing it removes then you would
probably want to call top right before you popped and top will return a copy of
Just to clarify, if I wanted to remove something and get a copy of it and I had this line 13
form of pop from whatever implementation I was using, then well, I would just call pop
and I would do something like this, you know, auto element equals, you know, the stack dot
pop.
And what would happen is under the hood, it removes the item and then it also returns
a copy to me.
Sorry for being too C++ in this video.
On the other hand, if I have the form that has void for pop,
then I would have to do something like this.
I’d have to say auto element equals stack.top just to get a copy first,
get a copy of that for before I remove it.
And then when I’m finished, then I can say s.pop just to grab a copy of it and then remove it.
So for now, we’re just going to use the form that gives you a copy of the data
at the same time that you’re removing it.
thing to keep in mind let’s see there are two other functions i wanted to mention mention real
fast so for now i’m going to say that we only have the t pop type you can also check to see if a stack
is uh is empty and you can also check its size uh usually those are functions that have those names
but i’m going to do let’s see boolean empty and then i’m going to say size type size again sorry
an unsigned 64-bit integer so just like a count or a size something that’s just
going to be a whole number and never negative so we have this little
interface that this data structure has and we have been calling push so far so
let’s go ahead and do some pops I’m gonna say auto auto elements equals s
dot pop maybe I’ll do two of those in a row maybe instead of calling that
just so that we can have different variables to put our pops in.
And then maybe after that, I’ll do some more pushes.
I’ll say, let’s push like a 15 and let’s push like a 25.
And then I think that means it’s probably time to erase that,
the top part of the diagram with the 8, 2, 3, 4
in favor of just whatever pushes and pops we’re doing.
So let me just do this real fast.
Okay, so we did our pushes.
two three four and then I’m going to try to grab a couple pieces of data with these pops
and for pop all you have to do is just to well I should have mentioned this before but first
check to make sure that there is something to pop for example if I had a blank stack let’s say I had
a blank stack right here there’s just like nothing on it and this green line is non-standard I’m just
drawing it for fun but imagine I had a blank stack with no items and I decided to call pop on it
well you’re not allowed to pop them an empty stack there’s nothing there to pop which means that’s a
stack there’s nothing there to pop which means that’s a really really naughty thing in c++ and
other languages we would say that something exceptionally bad has happened the user tried
to pop something that wasn’t there and so then we would do something called throwing an exception
at the user again this is not really a code video but if you know a little code hopefully you
understand try catch blocks and throwing exceptions when bad things happen so we would just throw an
exception at the user if you don’t know how to code at this point then just keep in mind we would
mind we would refuse to do it we would say something bad has happened we can’t do that
and then when you’re doing your pushes sometimes depending on what what you’re using to implement
the stack under the hood inside of your code you might decide that you’re using let’s say you’re
using an array under the hood which has a fixed capacity if you run out of capacity and you can’t
then you would throw if the user tried to push something into a full stack we would call that a
stack overflow and then when we tried to pop from an empty stack we would call that stack underflow
but for the purposes of this video just assume that the stack is just a diagram and it has no
capacity so we can just add as many things as we want on it or maybe we’re using a linked list
under the hood which would have an unlimited capacity or limited only by the machine’s
But anyway, so let’s go ahead and try to do this pop.
So let’s do a pop here.
Well, in the pop, we just look at the top only, right?
So we say, well, you know what?
Let’s make this more interesting.
Hang on a second.
Let’s make this more interesting.
Let’s do this.
I’m going to do auto a equals s dot top.
So I’m going to grab a value without actually removing it.
Okay.
So more interesting.

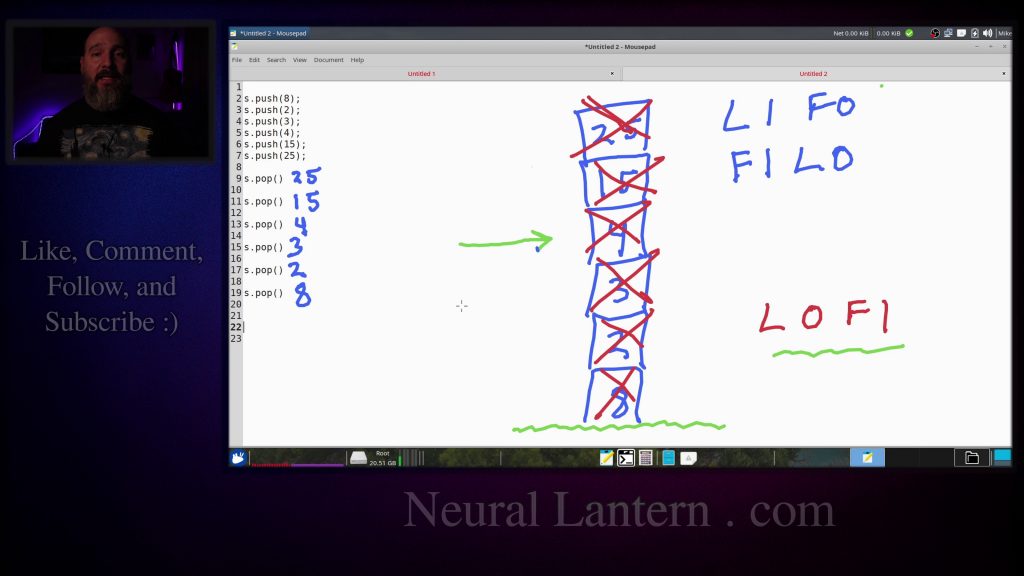

So we push the 8 and we push the 2.
So at that point in time, actually let’s trace this from scratch.
So we have like an empty stack here.
There’s nothing there.
And we’re going to push the 8.
So the 8 goes on the very top, just like we did last time.
I’m going to put an 8 there.
And then we’re going to push the 2 next.
So the 2 just kind of goes on top.
And then the next line, line 12, we’re just checking the top.
we’re allowed to actually look at the top if we want to. So since two is at the top, that means
a is equal to two. I’m going to put a two here to remind ourselves that a is now equal to two.
Then we’re going to do a push three. So I’m just going to stick a three on top of the stack.
And then we’re going to push a four, four is on top of the stack. Now, again, we’re not allowed
to look at anything in the middle, anything, anything, but the top. So for example, when the
it and remove it but now that we have a four on top we can no longer even see the three it’s not
available to us anymore so then we’re going to pop and put that value into b so um you know what’s
at the very top it’s a four so that means we’re going to actually remove the four and stick that
into b so i’m going to put four right here to remind ourselves that b is now equal to four
and uh for the purposes of this video you can just imagine that this you know the top of the stack is
of the stack is just totally gone deallocated depending on what implementation you use you
might want to think about crossing it out maybe there’s like some junk data there now but for the
purposes of this video in this diagram we’re just saying it’s gone so it’s just totally gone
okay then let’s do another pop so we’re going to pop and that’s going to become c so obviously the
top is uh is now the three so that means the three is going to go into the c variable so here’s a
c variable so here’s a three right there then the three gets deallocated
and now the top is the two so then we’ll push a 15 and we’ll push a 25 so again we just put those
new items on top of the stack even if there was stuff uh there before it’s gone now so we’re just
be a 15 and a 25 on top of the stack so we got this and then 25 and then we’re done adding our
stuff so uh the other functions that we talked about are empty and size uh at the very beginning
when we had just an empty stack like that if we were to call on the empty function it would tell
us true the stack is empty and then every step after that where we had some data in the stack
data in the stack like as soon as we even added that eight at the very beginning from that point
forward then empty would have returned false to us saying no the stack is uh it’s not empty
the size would have changed uh during every step of the way so you know at line 10 the size would
have been one after we’re finished with line 10 after line 11 the size would have been 2. 12
wouldn’t have changed the size so it still would have been 2. 13 would have upgraded the size to
have upgraded the size to four once we popped after that pop was finished it would have been
three again then the second pop would have brought it back down to two and then those two pushes
would have put it back up to three and then four and so then the final size whoops that was horrible
the final size of the stack is four and you can tell that there’s just four items
another way to double check yourself if you’re kind of trying to trace this on your own is just
count the number of pushes and subtract the number of pops so how many pushes do we have one two three
2, 3, 4, 5, 6.
So that’s like 6 minus however many pops we saw.
We see 2 pops.
So 6 minus 2 is equal to 4.
So, you know, when you’re writing this sort of thing down on,
like as a diagram to practice,
then you know it’s a 4 just by looking.
But what if you did something wrong?
It’s a great idea to double check yourself at all times.
So 6 minus 2 is 4.
So we know that the size of the stack is 4.
Looks pretty good.
Looks pretty good and we know the values of A, B, and C and you know one of those was
top two of those were pops.
And yeah, okay.
So notice something though that’s kind of peculiar about the data that came out.
If we added the data, like I guess while we were adding the data, we added first an eight
and then a two and then a three and then a four.
I’m just looking at the pushes right now and then a 15 and then a 25, right?
So we added the data in that order.
order. But then when we grab the data out, let me put this in, but maybe like a red bracket
or something. When we grab data out of it, the pops and the tops gave us two and then
a, okay, nevermind. That was not a pop. It gave us a four and then a three if we’re just
look at the, look at the first two items. Sorry, sorry, sorry. Look at the last two items right
before, and I didn’t draw this very well. Imagine that we had just pushed the eight and the two and
the three and the four only forget about these other pieces of data. So at this point, when we
start calling our pops, we have only an eight, two, three, four stack, right? So the data that
has a four and then a three if we’re removing data from the stack.
So notice how the four and the three are backwards.
Notice also like if we kept popping out data, you know, we got the four and then we got
the three, the next, what’s the next thing that would come out?
It would be the 25, right?
And then it would be the 15.
And then it would be the two.
And then it would be the eight.
So if you really think about it, the stack is reversing our input data.
We added a three and then a four, but we received a four and then a three.
And of course, it’s a little bit muddled because we have some pushes in between some tops and pops and stuff.
But just looking at what goes into the stack, it’s backwards, right?
Eight, two, 15, 25.
Let me finish this push sequence up here.
So we added three and four, and then we added a 15.
And then, oh, my penmanship, dude.
shit dude 15 and then we added a 25 so if you look at the data that comes out this is like a 15 and a
25 backwards and then the three and the four are backwards and then the two and the eight are also
backwards and so one thing that a stack does is it reverses data let me give you a cleaner example
with no pops in between the pushes just to show you what we’re talking about a little bit more
bit more clearly okay so i’m going to do maybe like another code page here whoops do that and
then i’m going to say got our stack and we’re just going to push in some data
and then we’ll just say s.pop and maybe i’ll just do that however many times
six two three four five six so now just a very quick trace because this is basically the same
intermixed. So I’m going to do like the bottom of the stack here. And then, well, I mean like an
empty stack. That’s not really a bottom of a stack. So we’re going to push an eight.
And then we’re going to push a two. And then we’re going to push a three. And then we’re
going to push a four. Then a 15. Got to work on my fives, dude. Okay. And then 25.
Okay, one more time.
Oh yeah, I guess I got to slow down.
So what’s going to come out?
Remember the top is the only place that will give us data.
So if we start popping all these one by one, we’re going to end up with a 25 for that first
pop.
Maybe I should write it down over here.
Do like a 25 and maybe I’ll add some line breaks in the code here so that it’s easier
for me to write with a pen.
Do this and that.
Okay, so the 25, I’m just going to do a red line through it to designate or to denote
deallocation or just like gone-ness.
Then the top is at the 15.
We do another pop.
It’s going to be 15.
Oh, I did my first perfect five today.
And then the top of the stack is now at the four.
So then the four is going to pop out next.
And then the three is going to pop out next.
The top is now at the three.
the three so the three is coming out for that pop we deallocate the three the top goes down one and
then we pop it becomes the two that’s deallocated now and then we grab the eight because that’s
where the top is so now we’ve grabbed all of our data out and I just want you to look at this one
more time notice the data is eight that the data that went in was eight two three four fifteen twenty
The data that came out was backwards 25, 15, 4, 3, 2, 8 or 8, 2, 3, 4, 15, 25.
If you kind of like look up.
So a stack is a data reverser.
A stack is also known as something called a, let’s see,
last in first out data structure, LIFO,
or first in last out, phylo data structure.
What that basically means is just it’s reversing the data or priority goes to the item that is the youngest.
So if you looked at the stack at the point where we were about to remove the 25,
25 was the most recently added or the youngest item or the item with, I guess, the timestamp, the furthest in the future,
however you want to look at it.
And that’s the item that came out.
So if you think about it, it was the last item in.
And therefore, when we did another pop, it was the first item out.
So LIFO or PHILO.
and uh you know this eight down here that was obviously the last item that we were able to grab
out of it so when we said you know hop our final pop before the stack became empty uh the eight was
definitely the first item in so first in was the last out if you really want to you can kind of like
jumble these uh these acronyms uh i think most like people just use lipo or phylo
life if you say something to me that I understand I think it’s probably fine
but it’s it’s non-standard I like to say you know foley first out last in that
definitely makes sense it’s just not very common another thing that I like to
do for fun is also I’ll mix up the phylo and I’ll say lo-fi because last out is
first in and now I’m cooler than other computer people because I use the word
lo-fi I’ve now got like a giant mustache and like a little like swap meet shirt
like swap meat shirt and I have craft beers and I have work boots on and I’d
roll up my jeans and my, my, my, my, my sleeves are rolled up and all that stuff.
You know what I’m saying?
I’m cooler than everybody else now because I used loaf pie anyway.
So we used integers.
It’s just important to understand that in modern coding,
I think I might’ve mentioned this before with the T’s,
these stacks are templated data structures,
we can hold another data type besides integers as long as we declare what the stack will hold in
advance. So instead of integers, you could imagine there’s like a custom class, like my class,
every single, you know, item in the stack is actually a full instance of a my class object,
or, you know, floats or strings or just, you know, any data structure you want,
you could put another data structure inside of a stack. People do that sometimes just for fun,
sometimes just for fun you could take a vector and stick it inside of a stack a list put it inside
of a stack you know whatever you want to do just to show that you understand everything
um so again by the way the stack is empty if we tried to pop from it at this point
this would be called a stack underflow we would probably want to throw an exception at the user
or just say we’re not allowed to do it let’s see um so i guess now i should tell you some
common uses for stacks i’m looking at my notes right here uh obviously our stack has reversed
has reversed the data. So stacks are kind of good for data reversing. Imagine if you had like a word
and you wanted to detect if the word was a palindrome or not, you would just like put all
the letters of the word into your stack and then grab them back out and see if the word was still
in the same order. If it was, then your word was probably a palindrome. If you don’t remember what
a palindrome is, I’m going to write down the word radar in reverse from backwards, from back to
front, right? It’s the same word. So that’s a palindrome. You could also use stacks kind of
as a trail of breadcrumbs. Like you could imagine that early implementations of browsers
had your browsing history in a stack somewhere so that every time you visited a webpage, then
some kind of block of information, maybe like a custom class instance was put onto a stack
somewhere and it contained information about like when you visited the webpage, what the URL was,
it is that the browser wants to remember and then later when you hit the back button then you can
imagine the browser is popping from the stack in order to go backwards in your history or your
spotify playlist or whatever it is you’re doing honestly you know these systems are much more
advanced than just using you know vanilla stacks now but you could imagine doing something on your
own for fun or just what it might have been like in the very beginning i’m going to erase fully
because that’s just that’s just that’s just cringe lo-fi i think is way cooler um so trail of bread
So a trail of breadcrumbs, like browser history, you could also imagine undo history, like
if you had a, I don’t know, like a text editor of some sort or like a image editor of some
sort, every major change that you did to it, maybe the program under the hood is adding
your change to the stack.
And that makes it easier to sort of reverse your changes as those changes are popped.
And there’s like a sort of mathematical uses like balancing parentheses and things, but
balancing parentheses and things, but I’m not going to talk about that too much.
And one of the most important uses for stacks inside of your computer is actually the call
stack. I’m going to talk about that in a future video. But again, remember each, you know, little
item on the stack, it could be a different data structure on its own. It doesn’t have to be an
integer. So imagine that I bundled up a bunch of information about a function call, and I called it
I just stuck a call frame on the stack.
That’s basically the call stack.
But that’s for another video.
Anyway, so let’s see.
Is there anything else that I wanted to show you?
I think we’re actually done just talking about the basics of stacks.
I’m not talking about time complexities or anything like that in this video.
Check a future video if you’re interested in time complexities per certain implementations
and so forth.
But for now, this is how a stack works.
or LIFO or LOFI data structure.
Nobody’s going to say LOFI but me, just FYI.
But maybe everybody will start doing it now.
I don’t know.
If it becomes a trend, okay?
You heard it here first.
Give everybody this link.
All right, I hope you feel like an expert on stacks
at this point.
I hope you had a little bit of fun
and learned a little bit of something, some stuffs.
I’ll see you in the next video.
hey everybody thanks for watching this video again from the bottom of my heart I really
appreciate it I do hope you did learn something and have some fun if you could do me a please a
small little favor could you please subscribe and follow this channel or these videos or whatever it
is you do on the current social media website that you’re looking at right now it would really mean
the world to me and it’ll help make more videos and grow this community so we’ll be able to do
videos, longer videos, better videos, or just I’ll be able to keep making videos in general. So please
do me a kindness and subscribe. You know, sometimes I’m sleeping in the middle of the night
and I just wake up because I know somebody subscribed or followed. It just wakes me up
and I get filled with joy. That’s exactly what happens every single time. So you could do it as
a nice favor to me or you could you could troll me if you want to just wake me up in the middle
of the night, just subscribe and then I’ll just wake up. I promise that’s what will happen.
Also, if you look at the middle of the screen right now, you should see a QR code which you can scan in order to go to the website
which I think is also named somewhere at the bottom of this video and
It’ll take you to my main website where you can just kind of like see all the videos
I published and the services and tutorials and things that I offer and all that good stuff and
If you have a suggestion for
Clarifications or errata or just future videos that you want to see
please leave a comment or if you just want to say hey what’s up what’s going on you know just send
me a comment whatever i also wake up for those in the middle of the night i get i wake up in a cold
sweat and i’m like it would really it really mean the world to me i would really appreciate it so
again thank you so much for watching this video and um enjoy the cool music
as as i fade into the darkness which is coming for us all
Thank you.
