In this detailed tutorial I walk you through exactly how to implement while loops in x86-64 assembly language using YASM. We start with the basic concept of a while loop as it exists in higher-level languages like C/C++, then break it down into labels, conditional jumps, and unconditional jumps so you can see exactly how the control flow works at the assembly level.
I explain why we usually put the condition check at the top, how to handle the jump distances (especially the ~128-byte limit of conditional branches), why unconditional jumps are preferred for the loop-back, and how to structure init / top / body / done sections clearly.
We then build a complete, runnable hybrid program (assembly + tiny C++ driver) that:
- prints an intro message
- repeatedly asks the user to enter numbers
- echoes each number back
- continues until the user enters 99
- prints a goodbye message when finished
Lots of practical tips about label naming conventions, register preservation (R12 in this case), and debugging flow are included along the way.
Assumed knowledge: basic x86-64 assembly, how to use a makefile, simple system calls, and calling external functions. If you’re new to those topics, check my earlier videos first.
Hope this helps someone finally “get” while loops in assembly!
Thanks for watching – subscribe if these kinds of low-level explanations are useful to you.
Introduction to While Loops in x86-64 YASM 00:00:00
While Loop Concept in High-Level Languages 00:00:56
Breaking Down While Loop Structure 00:02:00
Labeling Key Sections Top Body Done 00:02:40
Conditional and Unconditional Jumps Explained 00:03:26
Why Prefer Shorter Conditional Jumps 00:04:40
Diagram of While Loop Flow 00:06:52
Alternative While True with Internal Break 00:08:08
Do-While vs Regular While Difference 00:09:32
Program Setup and Data Section Overview 00:09:53
Hybrid Program Structure and External Functions 00:10:56
Main Function and While Test Call 00:12:56
While Test Function Prologue 00:13:21
CRLF Helper Function 00:14:00
Intro Message and Loop Initialization 00:14:50
While Top Comparison with 99 00:16:57
Entering the Loop Body 00:19:08
User Input and Echo Output 00:19:38
Jump Back to While Top 00:20:29
Exit to While Done Section 00:21:39
Goodbye Message and Function Epilogue 00:22:14
Live Demo Running the Program 00:22:30
Summary and Closing Remarks 00:23:12
Call to Subscribe and Website Mention 00:23:46
=-=-=-=-=-=-=-=-=
Thanks for watching!
Find us on other social media here:
- https://www.NeuralLantern.com/social
- Twitter / X: https://x.com/NeuralLantern
- Rumble: https://rumble.com/c/c-3696939
- BitChute: https://www.bitchute.com/channel/pg1Pvv5dN4Gt
- Daily Motion: https://www.dailymotion.com/neurallantern
- Minds: https://www.minds.com/neurallantern/
- Odysee: https://odysee.com/@NeuralLantern:5
Please show your support!
- Buy me a coffee: https://ko-fi.com/neurallantern
- Subscribe + Sharing on Social Media
- Leave a comment or suggestion
- Subscribe to Blog: https://www.NeuralLantern.com
- Watching the main “pinned” video of this channel for offers and extras
All right, hello there. In this video, I’m going to teach you how to implement while loops in YASM
x86-64 assembly. Although you probably don’t need to be using YASM assembly to understand
this video or to benefit from it. So what am I talking about? First off, okay, so we’re going
to do while loops. There’s a lot of assumed knowledge in this video. If you don’t know how
assembly program, if you don’t know how to make a make file, if you don’t know a lot
of the basics that I’m just skimming over in this video, you’ll need to see my other
videos because I explain all of those things at length.
For this video, I’m just going to be talking about while loops only.
So for starters, let’s see here and open up a little notepad here and just type a while
loop and try to explain a little bit about it conceptually.
And then after that, we’re going to, we’re going to write a program in Yasm to show that
we can get this to work.
So what is a while loop in a higher level language?
We’ll just suppose C or C++.
You can imagine whatever language you want, but typically in a while loop,
we’re not talking about a do while loop, although that would be really easy
to implement after watching this video.
But in a regular while loop, you have the keyword while usually,
and then you have some sort of an expression like does a equal B or whatever.
So maybe I’ll just say does a equal B?
Expression evaluates to true then the body of the while loop will execute and then when it’s done executing
Execution will go back up to look at the expression again and make sure that it’s still true
So the loop will run forever until that expression evaluates to false
Maybe that’s what you want. Maybe that’s not what you want, but that’s what it’ll do
And that means the body runs an endless number of times
Also, if the expression evaluates to false on the very first run
then the body of the while loop will just never run at all.
So that’s, you know, a basic idea of a while loop in a higher level language.
Hopefully you kind of already know that.
So let’s look at the parts right here.
If we imagine this as assembly,
then probably the first thing we should do is label the part
where we look at the expression and decide whether we’re going to continue or not, right?
So I’m going to put a little label here
and maybe we’ll call it a while top or something.
You know, whatever you want to do.
just to label the part of the code
So that we know when we write assembly
We’ll be able to put the appropriate labels on the different parts of the while loop and we’ll be able to imagine
The while loop that we’re implementing in assembly
So I’m gonna say this is the top or you can call it the eval part whatever you want
Then we’ll make another label down here. We’ll call it
You know while body something like that and so basically if we want to jump up to the top of the while loop to evaluate the
expression, we just have to basically jump to that label called while top.
And if we want to jump to the body to actually execute the code,
then we just have to jump to that other label instead. We should also have a label at the
very bottom after the whole while loop is over and we’ll call it, you know, while finished
or while, whoops, finished or while done or while over something like that. So I’m just going to
Now you can imagine that when we’re at the top of the while loop and we see that the
expression is false, then we can just jump down to the done label, thereby exiting the
entire while loop.
Then of course we probably want to have some jump statements in here.
So for example, the expression part here, it’s probably going to jump either to the
body or either to the done area based on whether or not the expression evaluated to true or
false.
label while top you know which contains a conditional branch and then like an unconditional
jump so if a condition is true maybe we can jump into the body if the condition is false we’ll fall
through to the next statement and do an unconditional jump to the done label if you don’t
know conditional branching this is another one of the topics that i’ve covered in previous videos
as we implement the while loop.
So just keep in mind, there are other videos that I have
that you should watch first
if you don’t understand conditional branching or jumps.
The reason that I’m going to kind of design
the jumps like this where I’m going to say,
let’s do a conditional branch.
And basically if the loop evaluates to true,
we’ll jump into the body of the loop.
And if it doesn’t evaluate to true,
then the conditional branch will allow execution
to fall through down to the next statement,
which will simply contain a jump to the done portion.
to the done portion so basically as soon as the while loop is ready to break it gets uh implemented
by an unconditional jump which was fallen through to by the conditional branch that would only jump
into the body if uh expression was true i’m doing it this way because it’s usually a shorter jump
uh to jump to the true area you know the the body of the while loop and remember conditional
branching instructions have a maximum you know jump reach of about 128 bytes so if you try to
128 bytes. So if you try to jump too far, like for example, if you wanted to, you could reverse
the logic to where you could say, if an expression is true, let’s jump to the done portion and say,
we’re going to break the loop. If the expression was false, we’ll jump into the body. You could
do that. But then if the body of your while loop was too long, maybe it was so long that the last
instruction was greater than 128 bytes away from the top. Then by the time you wanted to
let’s see yeah if you have if you have too long of while loops you can’t jump more than 128
instructions away so that’s a limitation of contentional branching so I just I want to put
the biggest jump on an unconditional jump instruction because it doesn’t have a limitation
like that I was having a hard time imagining what I was about to say just now for the
the reversal I guess I’m just going to ignore the reversal scenario and we’ll just do it the
and we’ll just do it the regular way.
Anyway, so we want to have a conditional jump that either jumps into the body or to the done area.
And then at the very bottom, we want to have an unconditional jump to the top,
which basically means every time we get to the bottom of the while loop body,
we’re just going to jump up to the while top.
Actually, I’ll just say to while top.
Remember again, the regular jump instructions,
maybe I’ll take out the U here.
The regular jump instructions don’t have a limitation
on how far they can jump.
So that should be fine.
And that’s the basic idea of implementing a while loop.

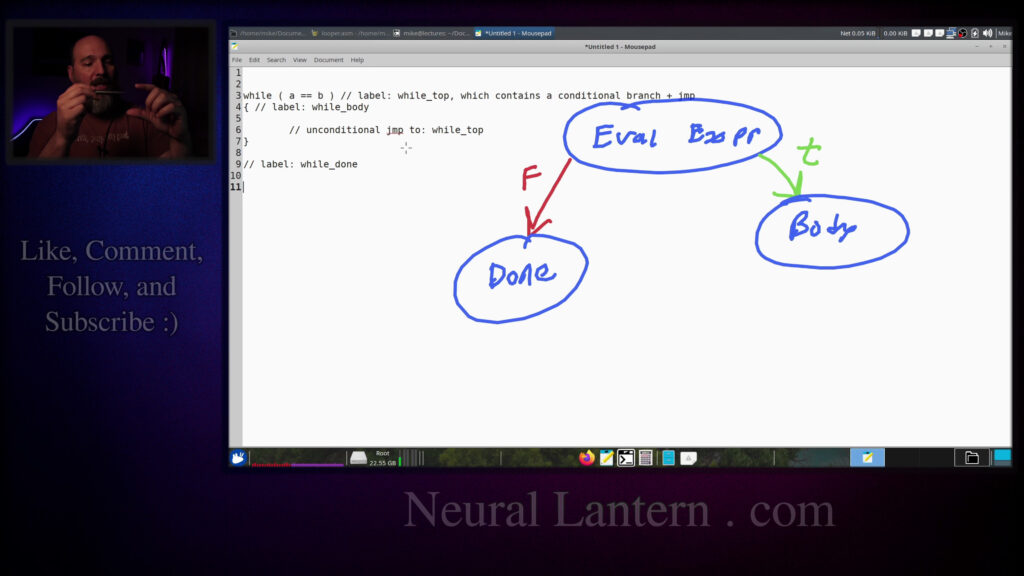

Maybe I should draw just a quick diagram
before we start looking at the code,
just to make sure everybody of different learning styles
understands what I’m talking about.
So we’ll, let’s see, eval.
I’m still adjusting my pen and you know what?
You know what? It looked a lot better before I hit record.
Eval the expression.
So I’m going to first evaluate the expression.
If it evaluates to true, we’ll put a green arrow here and I’ll put like a T for true.
Then this will be the body of the while loop.
I’ll say like the body.
If it evaluates to false, let’s see.
I’ll just put that in red and I’ll put an F here then this is just going to be the done area
right so you can imagine we evaluate an expression using the compare instruction in assembly and
based on the results of comparing something whatever it is that your condition is then we
you know we we either branch to the done area or we branch to the to the body area
want to have a more complicated while loop and you don’t want to put a huge
amount of expressions or if you don’t want to logically concatenate a bunch of
different components into the expression you know that’s fair I usually write my
while loops in real life as just while true and then I break when certain
conditions are met you can do that too we’re not going to talk about that in
this video but you could just have a while true so you always jump to the top
and there’s no branching that goes to while done but then throughout the loop
loop you can just sort of check to see if certain conditions are met and if they are then you’ll do
a branch to the done area and if they’re not then by the time you make it down to the bottom of the
loop then it just automatically jumps to the top although you got to make sure with the the reach
of conditional branching you probably want to test to see if your condition is true or false or
whatever if it means we’re going to continue the loop then you probably just want to do a conditional
then you probably just want to do a conditional branch that jumps down a little bit
so that it can continue the body of the loop.
And then the part that it skipped over,
just a little part should be an unconditional jump that jumps out of the loop.
That way, it doesn’t matter how big your while loop body is,
you can always jump out of the loop.
But we’re not going to talk about that in this video.
Anyway, so we evaluate the expression.
If it’s true, we go to the body.
If it’s false, we go to done.
After the body is done executing,
then we just jump back up to the top where we evaluate the expression.
where we evaluate the expression.
I’ll put while here just to make it more clear that we’re talking about the basic
idea of a while loop.
Not too hard, you know.
And then if you wanted to implement a do while loop, just make sure that you always
evaluate the body at least once.
That’s really the only difference.
But that’s up to you.
This is just a regular while loop video.
Okay.
So we’ve kind of talked about it a little bit.
We’ve sort of, you know, drawn it out in a diagram and put some regular code in.
and put some regular code in let’s set up an actual assembly program that will do this so for starters
again i’m not going to show you my make file because i’ve already made other videos where i
explained how to make a make file from scratch same thing goes for hybrid programs i’m going
to have a driver which is a c plus plus module that just sort of calls on this assembly module
if you want to know how to make hybrid programs or you know drivers or you know whatever see my
to be talking about looping only. Okay, so let me get my solution up here. My source code is called
looper. And I’m just going to copy paste the data section for my program real fast, just so you can
see it. Okay, so here’s the data section. Again, this is not a basics for assembly video. If you
don’t know how to do a data section in Yasm, see my other videos. But for now, I’m just going to say
like the actual array of bytes and then a length and all I’m doing is printing out messages you
know begin the wild test your numbers will be printed back to you until you decide to quit so
that’s going to be printed to the user right away then every time the program wants a number from
the user it’ll just ask you know please enter a number or 99 to quit and then it’ll prefix
the echo back it’ll say you entered and then it will actually print the number and then when you
we’re done and i’m going to use an external uh function that i have available to just kind of
like input and output numbers this video is not about uh input and outputting and external libraries
if you’re interested you could probably just link a hybrid program and use printf and scan
f to very easily do input and output but that’s not what this video is about see my other videos
then i have crlf which is just a carriage return in line feed uh you know select the cursor goes
You know select the cursor goes to the next line and then I have like a system call code to just print and
Then a file descriptor just to print a standard output again. That’s explained in other videos
So now I’m ready to start copy pasting the main portion of my program
So first off I’m going to start the text section, which is where the instructions go in the ASM
So there it is and then I’m going to copy paste
of external symbols. So I just have a little library that I’m using that makes it easier for
me to input and output integers. So you can do this any way you want, or you can hard code a
number in the globals area. If you don’t want to deal with input and output while you’re learning
how to do loops, that’s totally fine. But then the entry point is going to be a function called
looper. So this is my function. And again, this is a hybrid program. So the main function or the
be present in my assembly module the driver is going to be a c plus plus module that just calls
on a function named looper so that means this function is going to get called from another
module and that’s why i have to mark it as global and then it is a function so i’m going to call
return at the end of it to say we’re done and then within this function i’m just going to call two
other functions that i’m about to create one is called while test which is going to actually do
the while loop and the other is called crlf which just print which just prints a new line for me i
which just prints a new line for me.
I don’t know why I do it that way, but I want to.
Sorry, not sorry.
So this is the real meat of the function here.
Let’s start, well, the real meat of the code or the video.
Let’s start a function called while test.
You can see it’s got a void signature with no arguments,
so it doesn’t really, you know, take anything or return anything.
I’m going to use register R12 to hold the user’s input
so that I can, you know, print it out and stuff.
print it out and stuff so that means I have to do a preservation of R12 because it’s a
callee saved for the ABI which you should respect so I’m going to push it at the beginning
and then I’m going to pop it at the end and then this is a function so I have to return
at the end of the function let me just double check that there’s nothing else weird at the
bottom of that nope okay so we’ve got the prologue and epilogue the wild test function
maybe I should copy paste my crlf real fast my crlf function it’s just sad but
it’s also kind of cute right it does nothing except just print out a new line
that’s all it does this video is not about that so at this point I should
have a program that probably works let’s see if it does I’m gonna do clear and
make run again if you want to know how to use make files or compile or link or
anything like that see my other videos so I’m gonna run it and it just says
which is some code that we’re not looking at.
And then it says it’s regain control.
And this line in the middle, which is just an empty new line,
that’s definitely from the assembly program.
Because at the top here we have CRLF.
If I call it multiple times CRLF,
then you’ll see there are multiple blank lines.
All right, I’m gonna take that out.
Now let’s continue with while test.
So what should we do here?
The first thing that we should do is print an intro message
message just to let the user know that we’re about to you know begin our while
tests and if we run the program one more time we should see that message now
begin the while test your numbers will be printed back to you system calls and
simple printing is covered in other videos so now uh you know for me I kind
of like to init all of my loops even if it’s a while loop and not just a for
loop or anything so I always have an extra label that I like to call init
or before or something like that.
So I have a label now called while test underscore init,
and it’s just where I’m gonna initialize
whatever it is that I think I need to initialize
so that the loop will actually work.
If you look here, all I’m really doing is setting R12 to zero
because what I’m gonna do is stop the loop.
I’m gonna break the loop whenever the user enters a 99.
So I don’t know what’s inside of R12
when we first start this function.
And I just wanna make sure that it’s not 99,
the stopping number at the very start so I’m just going to set it to zero. So
another note about my labels you don’t have to do it this way but I love to
write labels where the first part of the label is always the function that the
label is inside of so notice how the function is named while test and so my
label is always while test underscore something and I’m putting init here
just to say we’re initializing the loop but if you had a function that had a
had a lot of stuff going on in it for starters you should probably be breaking up that function
into multiple functions but but assuming you didn’t uh you should probably do another underscore
and then like another component and then another underscore based on what giant chunk of your
function you’re inside of so if there was like an if part a while part an input part an output part
you probably want to you know stick that into your labels your labels will get huge but for me
infused in assembly and this makes it easier.
So we’re going to initialize so that we can run our while loop and then the next thing
we’re going to do is implement the top of the while loop.
So remember if we looked at this code up here, maybe if I drag this over to the side and
pin it to the top for a little while, you can see that the top of the while loop is
where we kind of evaluate the expression to see if we need to keep going or not.
jump into the ending area, the done area. So the top, whoops, the top is always for that.
We’ll say first, I’m going to ask, are we done? So, you know, how do we know if we’re done?
In this particular while loop, we want to compare the user’s input, which is R12 to the number 99.
And if it’s equal, then we will quit, which means also if it’s not equal, we will jump into the
So by the way, you’re probably wondering how did R12 get the user’s input?
Well, we’re going to do that as the next step.
And of course, your design pattern may vary a little bit.
No, that’s okay.
I just like to implement it this way.
So first thing we’re going to do is compare R12 with 99.
And that’s why I’ve written this comment here, just like the blank while comparison part.
And I guess I could have put this R12 not equal to 99 up at the top, but then it kind
of feels like I’m leaving these other two instructions.
So I moved it down one.
these other two instructions so I moved it down one so basically as long as you know we compare
R12 and 99 compare and conditional branching is covered in other videos but we compare those two
values and then we say if R12 is not equal to 99 then jump to the body and we expect that the body
will be like a short jump which will be within the range of a conditional branch
So anyway, if the not equal branch didn’t happen, that means R12 is equal to 99.
At that point, execution falls through to line 84, and we’ll just unconditionally jump out of the while loop.
So basically we’re saying, if it’s true, we continue looping.
If it’s not true, we just jump outside of the loop.
We’re just totally done with the while loop.
Okay.
So then we need a body, because obviously we’re going to jump into the body here.
that means I’m going to just copy paste another little set of code here.
Right after that unconditional jump.
So now we got the body.
Notice how I put a little comment here that has a brace just to indicate to you,
hey, this is the beginning of the actual while loop body,
just to make it a little bit more clear.
And what are we going to do inside of the body?
We’re just going to ask the user for some input.
So I’m printing a simple message here,
and then I’m calling on my helper function
to just actually input a number from the user.
I’m going to store that number into R12.
So that’s how R12 gets the numbers, gets the user’s input.
And the way I’ve written this, if the user enters a 99,
it’ll echo it back to the user and then it’ll break the loop afterwards.
So, you know, if you wanted to rearrange things like I talked about before,
where you input before you check to see if you’re going to keep going, you could do that.
But it would be a little harder to echo the user’s input back to them before you break.
I don’t know. It’s up to you.
I don’t know it’s up to you anyway so we grab input from the user and then we print another
message basically saying here’s the thing that you inputted no problem and then again we use
one of my helper functions to actually spit the number back out at them so this is not
a very complicated body it’s just asking for a number and then printing the number back to them
and then after that I’m going to do another label and I’m going to call it the body bottom
we don’t really have to do this label but for clarity I think it’s probably a good idea
I think it’s probably a good idea.
So the very bottom of the while loop’s body is usually where you don’t do any more instructions
that are part of the work of the while loop’s body,
but just sort of the place where you jump back up to the top
so you can evaluate and decide to continue or not again.
So notice how I’m using an unconditional jump here.
That’s a good idea because again, if you have like a huge while loop body,
you might end up surpassing the threshold of 128 bytes
of 128 bytes and then you’ll get a assembler error that says
I can never remember this. It’s like a
jump out of range error or something like that. Basically, if you do a conditional branch to jump up the top
because some people like to check to see
if they should continue the loop, they like to check for that at the bottom. I’ve done that before.
And then if true, then we’ll jump to the top of the loop. But if the loop is too big, that won’t work. So
I just like to take a long jump to the top of the loop and then decide if I’m going to keep going at the very top.
if I’m going to keep going at the very top. And then there’s a comment saying, hey, that’s the
end of the body. Okay, no problem. Now let’s do the done label, which is basically where we jump
if the loop is actually finished. So remember, if this expression right here evaluates to false,
then execution is going to fall through to line 84, where we jump to this while test done label.
And so I’m just going to put the while test done label right here. So we’re done. So the done is
So we’re done. So the done is not part of the loop. It comes after the loop. That’s this right
here on line nine of the little notepad. And we can just kind of do whatever we want. At that
point, we can return to a caller, we can just do other stuff, we can, you know, do a different
loop or, you know, whatever, we’re just done with the original loop. For me, I’m just going to say
goodbye with this little print to just sort of like, you know, print an exit message. And then
we’ll do the epilogue where we restore R12. And then we just return to the caller,
the driver worry about exiting the program okay so if we’ve done this correctly we should now have
a working program let’s see let’s see okay let’s enter a number let’s do 22 and it says you enter
22 and let’s do 55 and we just we can enter any numbers we want and as long as we’re not entering
99 the program will just continue forever so this is a while loop if i want to quit i do 99
breaks at the top it breaks by jumping down to the done area where we print our goodbye message
which just is end while test and then if we run this again if i do 99 from the start then it just
immediately breaks you know it prints out what you entered but then it immediately breaks
and that’s it that’s uh the basics for how to write a while loop you just use basically
layered on top of an abstract concept of what you think a while loop is,
or what I guess the world thinks a while loop is.
Okay, thank you so much for watching this video.
I hope you learned a little bit of stuff and had a little bit of fun.
I’ll see you in the next video.
Hey everybody.
Thanks for watching this video again from the bottom of my heart.
I really appreciate it.
I do hope you did learn something and have some fun.
if you could do me a please a small little favor could you please subscribe and follow this channel
or these videos or whatever it is you do on the current social media website that you’re looking
at right now it would really mean the world to me and it’ll help make more videos and grow this
community so we’ll be able to do more videos longer videos better videos or just i’ll be able
to keep making videos in general so please do do me a kindness and uh and subscribe you know
I’m sleeping in the middle of the night and I just wake up because I know somebody subscribed or followed.
It just wakes me up and I get filled with joy.
That’s exactly what happens every single time.
So you could do it as a nice favor to me or you could troll me if you want to just wake me up in the middle of the night.
Just subscribe and then I’ll just wake up.
I promise that’s what will happen.
Also, if you look at the middle of the screen right now, you should see a QR code which you can scan in order to go to the website,
which I think is also named somewhere at the bottom of this video.
and it’ll take you to my main website where you can just kind of like see all the videos
i published and the services and tutorials and things that i offer and all that good stuff and
if you have a suggestion for uh uh clarifications or errata or just future videos that you want to
see please leave a comment or if you just want to say hey what’s up what’s going on you know
just send me a comment whatever i also wake up for those in the middle of the night i get
it would really mean the world to me. I would really appreciate it.
So again, thank you so much for watching this video and
enjoy the cool music as I fade into
the darkness which is coming for us all.
Thank you.
